Flicker Free LED Driver

Circle 30-40W Series

City skyline

Photo By: John Doe
Button

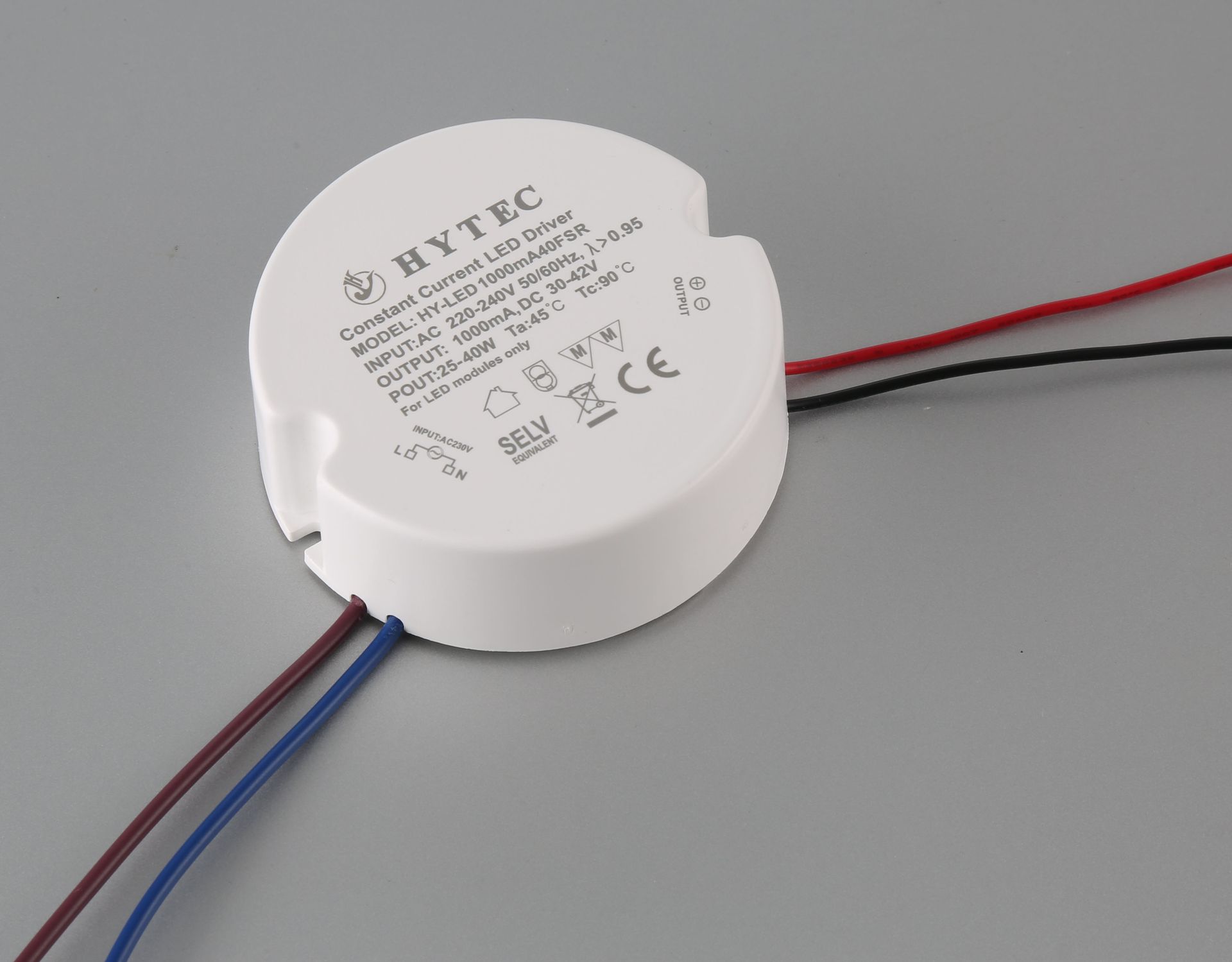

Flicker-free LED Driver 30-40W Series Circular Type

Features

  • High performance, low THD, no flicker (depth of modulation) <0.5%
  • over current and short-circuit protection
  • For indoor use only in a dry and well-ventilated environment.
  • Do not use this driver in high-temperature or humid conditions

Input voltage

AC220-240Vac (Input voltage range: 198-264Vac)

Operating Temperature Range

-20°C to +50°C

Application

Commercial lighting, office lighting, decorative lighting, residential lighting.

Product Dimensions

Contextual Image

Various Product Models

The output current can be customized

Models Input Voltage Output Current Output Voltage Output Power
HY-LED600mA40FSR AC 220-240V 50Hz 600mA DC 33-46V 20-28W
HY-LED650mA40FSR AC 220-240V 50Hz 650mA DC 33-46V 21-30W
HY-LED700mA40FSR AC 220-240V 50Hz 700mA DC 33-46V 23-32W
HY-LED750mA40FSR AC 220-240V 50Hz 750mA DC 33-46V 25-35W
HY-LED800mA40FSR AC 220-240V 50Hz 800mA DC 33-46V 26-37W
HY-LED850mA40FSR AC 220-240V 50Hz 850mA DC 33-46V 28-39W
HY-LED900mA40FSR AC 220-240V 50Hz 900mA DC 33-40V 30-36W
HY-LED950mA40FSR AC 220-240V 50Hz 950mA DC 33-40V 32-35W
HY-LED1000mA40FSR AC 220-240V 50Hz 1000mA DC 33-40V 33-40W
HY-LED1050mA40FSR AC 220-240V 50Hz 1050mA DC 33-38V 35-40W

Suitable for commercial office space lighting, home, and decorative lighting

Homes, offices, showrooms, restaurants, supermarkets, and more
