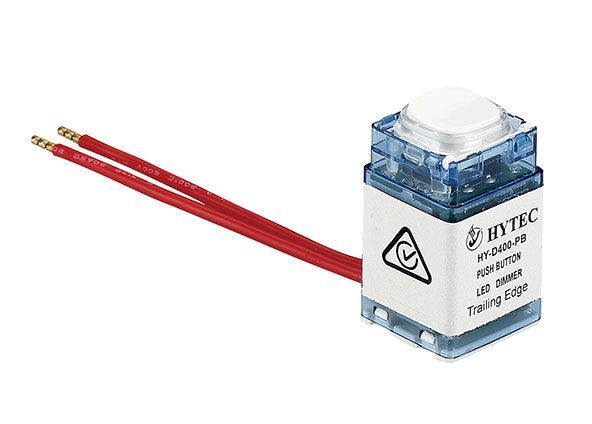

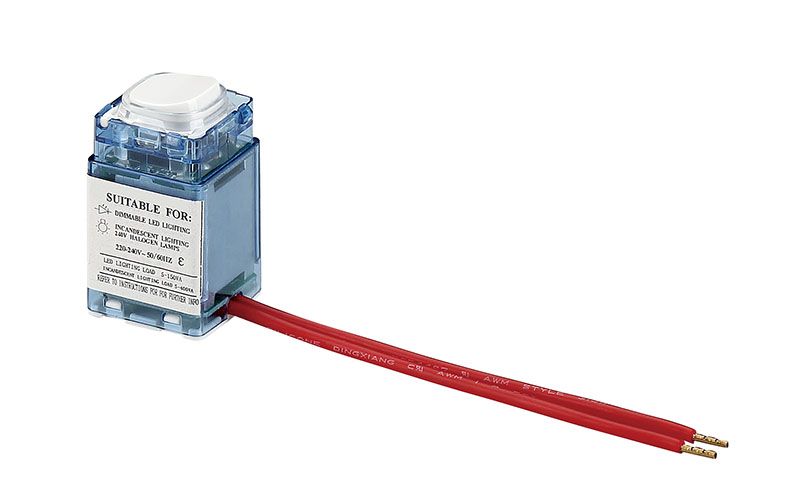

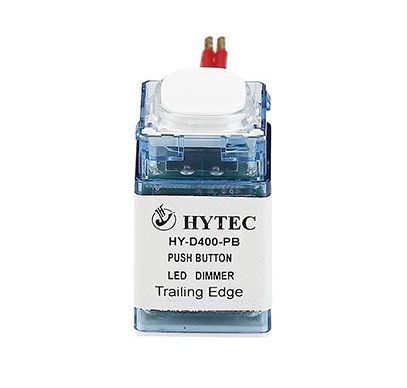

Push button dimmer 400W
HY-D400PB

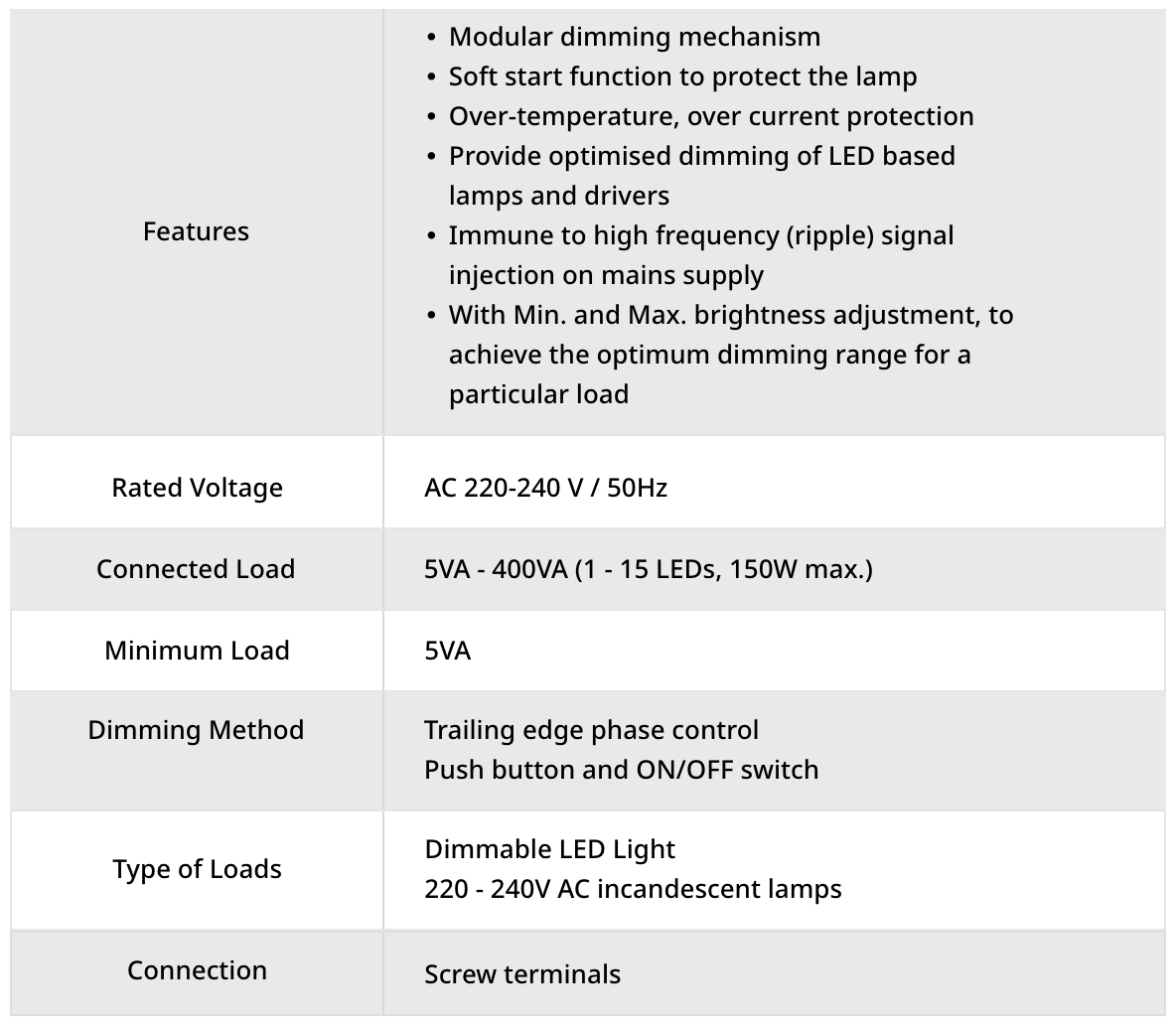

Features

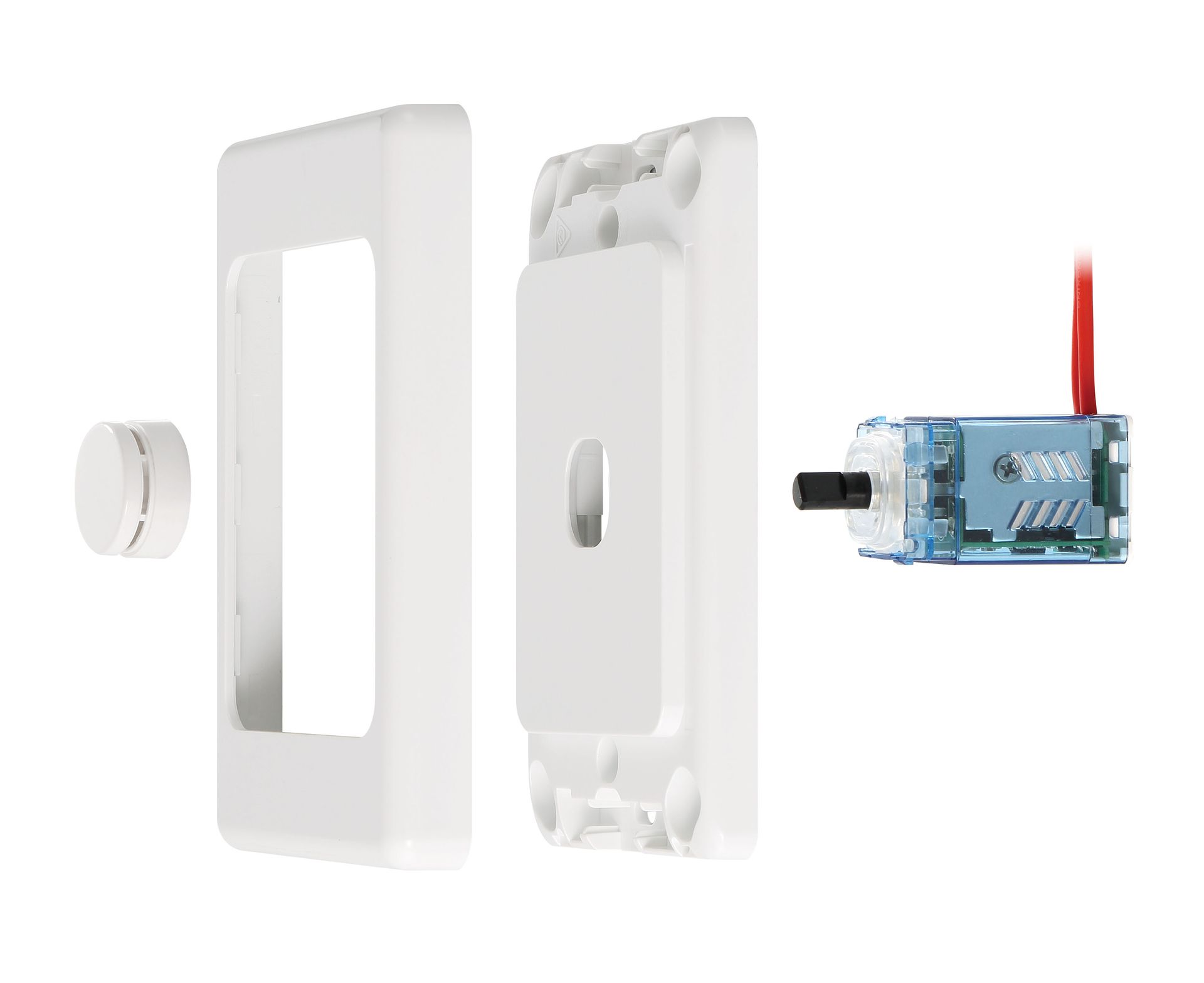

- Modular dimming mechanism
- Soft start function to protect the lamp
- Over-temperature, over current protection
- Provide optimised dimming of LED based lamps and drivers
- Immune to high frequency (ripple) signal injection on mains supply
- With Min. and Max. brightness adjustment, to achieve the optimum dimming range for a particular load
Rated Voltage
AC 220-240 V / 50Hz
Connected Load
5VA - 400VA (1 - 15 LEDs, 150W max.)
Minimum Load
5VA
Dimming Method
Trailing edge phase control
Push button and ON/OFF switch
Type of Loads
Dimmable LED Light
220 - 240V AC incandescent lamps
Connection
Screw terminals
You can adjust the dimmer lighting to achieve the desired effect according to the home environment
Homes, Offices, Showrooms, Restaurants, Supermarkets...
